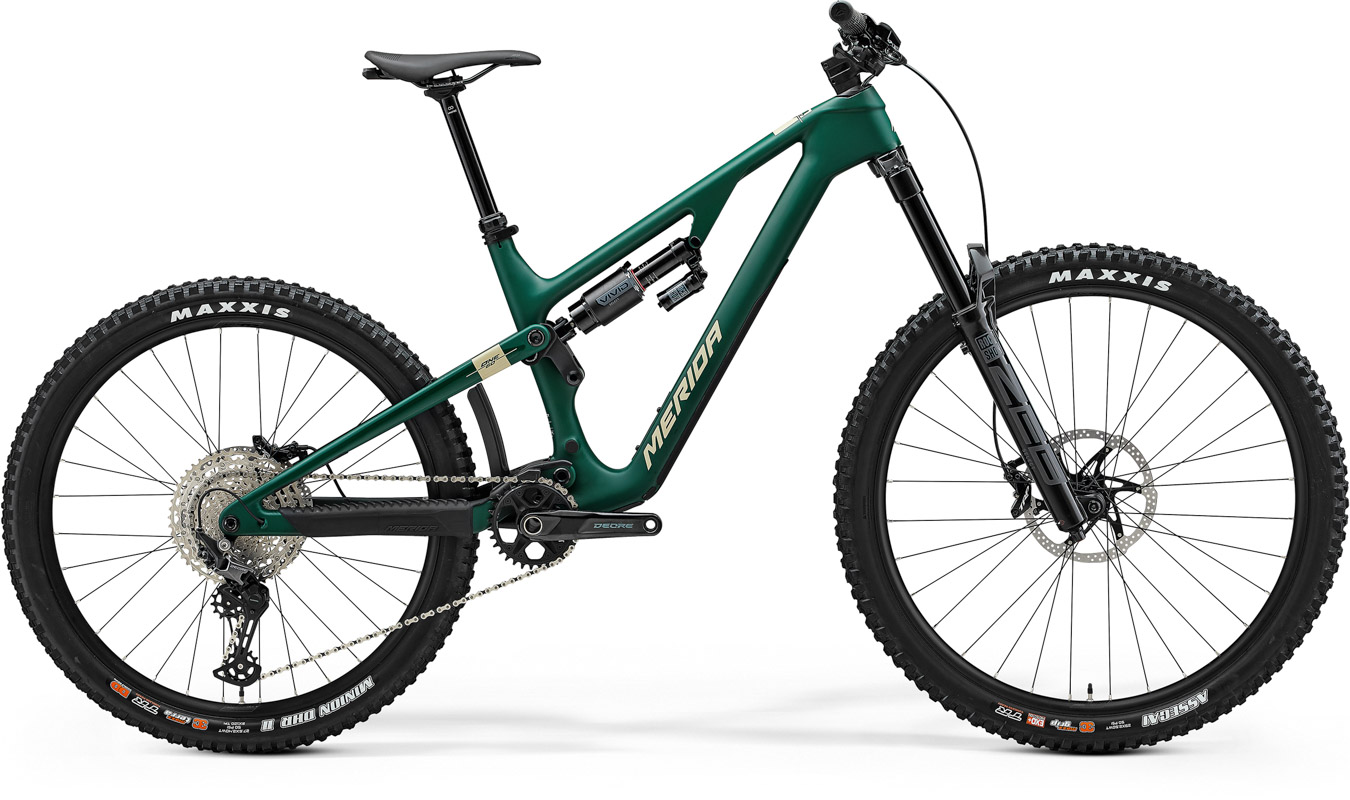

MERIDA 25 ONE SIXTY 6000 XS/S/M/XL- SILK DEEP FOREST GREEN (BROWN)
Description
**PLEASE ADVISE SIZE IN CHECKOUT NOTES – CONTACT FOR AVAILABILITY** Product Information Bikeradar’s Enduro Bike of the Year 2023. Our radical lightweight enduro carbon frame delivers […]
Attributes
**PLEASE ADVISE SIZE IN CHECKOUT NOTES – CONTACT FOR AVAILABILITY**
Product Information
Bikeradar’s Enduro Bike of the Year 2023. Our radical lightweight enduro carbon frame delivers the punch without the price tag. It’s a race-ready ripper that’ll take any big mountain trail or bike park in it’s stride.
*Full carbon frame with FAST kinematic suspension and radical enduro geometry
*Mixed or full 29er wheels with AGILOMETER sizing
*RockShox ZEB and Vivid suspension, proven Shimano drivetrain and powerful TRP Trail EVO brakes
*Maxxis Double Down rear and EXO+ front tyres
*230 mm travel-adjustable dropper post
*On-board tool storage and FidLock bottle cage
Specifications
| FRAME | ONE-SIXTY CF4 III; 171 STR mullet / 162 STR 29″; MAT carbon; 29×2.5″ max. WHS; 148×12 AST; BSA BBR |
| SHOCK | Rock Shox Vivid Select; platform |
| FORK | Rock Shox Zeb Select; Air; 170 STR; Tapered; 44mm fork offset; 29×2.6″ max. WHS |
| BRAKE – FRONT | TRP Trail Evo HD-M843; 4 piston |
| BRAKE – REAR | TRP Trail Evo HD-M843; 4 piston |
| ROTOR – FRONT | TRP RC01E; 203mm |
| ROTOR – REAR | TRP RC01E; 203mm |
| CHAIN | KMC X12 |
| CHAINGUARD | MERIDA EXPERT TR ISCG05 |
| CHAINWHEEL | Shimano Deore M6120; 32 ATC |
| CRANK/SIZE | 170 mm for all sizes |
| BB SET | Shimano BB-MT-501; 24mm |
| DERAILLEUR – FRONT | |
| DERAILLEUR – REAR | Shimano Deore M6100; SGS |
| FREEWHEEL | Shimano Deore M6100; 10-51 ATC; 12 GER |
| PEDAL | |
| GRIP | MERIDA EXPERT EC |
| H-BAR | MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB |
| H-B STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
| H-STEM/SIZE | 40 mm |
| HUB – FRONT | Shimano TC500-B; 110×15 WHF; 32 SPH; Centerlock |
| HUB – REAR | Shimano TC600-MS-B; 148×12 WHR; 32 SPH; Centerlock |
| AXLE – REAR | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA EXPERT TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5″ up to Size M / L & XL rear 29″ |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT |
| SHIFTER – FRONT | Shimano SL-MT500-IL |
| SHIFTER – REAR | Shimano Deore M6100 |
| TYRE – FRONT | Maxxis Assegai; 29×2.5″; fold; TR EXO+ 3C MaxxGrip |
| TYRE – REAR | Maxxis DHR II; 27.5×2.4″ XS/S/M 29×2.4″ L/XL; fold; TR DD 3C MaxxTerra |
| BOTTLE CAGE | Fidlock Integrated Base & MERIDA Bottle |
| E-SHIFT PARTS-1 | |
| OTHER 1 | Rear Brake Adapter PM 200mm to 203mm rotor |
| OTHER 2 | Velcro strap & Tube Base Mount CF |
| OTHER 3 | |
| OTHER 4 | |
| OTHER 5 | MERIDA Multitool with saddlebox |
Please note – specifications subject to change without prior notice.
Geometry
| Frame Name | ONE-SIXTY CF4 III | ONE-SIXTY CF4 III | ONE-SIXTY CF4 III | ONE-SIXTY CF4 III | ONE-SIXTY CF4 III |
| Frame Size Name | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5″ | 29/27.5″ | 29/27.5″ | 29″ | 29″ |
| Frame Size Inch | |||||
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 535 | 562 | 589 | 621 | 653 |
| CS chain stay length [mm] | 434 | 434 | 434 | 437.5 | 437.5 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 79 | 79 | 79 | 79 | 79 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 7 | 7 | 7 | 27.5 | 27.5 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| FO fork offset [mm] | |||||
| R reach [mm] | 415 | 442 | 470 | 498 | 525 |
| S stack [mm] | 615 | 615 | 615 | 625 | 638 |
| WB wheel base [mm] | 1188 | 1215 | 1242 | 1275 | 1308 |
| SH stand over height [mm] | 727 | 730 | 737 | 736 | 776 |
